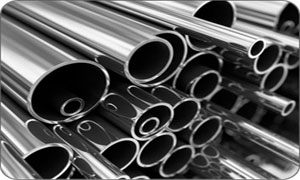

Stainless Steel Pipes & Tubes

|||

We are one of the leading manufacturers, exporters and suppliers of superior quality stainless steel pipes, stainless steel tubes in different specifications, which find application in high demanding industries and sectors, particularly high temperature and corrosive services. Our stainless steel seamless pipes and stainless steel seamless tubes are reliable long lasting and at par with international quality and safety norms. Special grades can be made as per customer's requirements.

SMI is one of the leading masters in Stockiest & Importing of Stainless Steel ERW, EFW and Stainless Steel Seamless Pipes and Stainless Steel Seamless tubes. Our supply chain includes its sources who are highly Renowned and Professional manufacturers acquiring High Level of industry expertise and latest technology.

Stainless steel is more expensive than standard grades of steel but it has greater resistance to corrosion, needs low maintenance and has no need for painting or other protective coatings. These factors mean stainless steel can be more economically viable once service life and life-cycle costs are considered.

Material	TP 304, 304H, 304L, 304LN, 316, 316H, 316L, 316LN, 316Ti, 309, 310, 317L, 321, 347, 409, 410, 420, 430, 446, 202 Etc.
Standard	ASTM A - 270, 249, 312, 269, 213, 268, 358
Construction	ERW - EFW - EFSW
Schedule	S 5, S 10, S 20, S 40, S 60, S XS, S 80, S 100, S 120, S 140, S 160, S XXS
Pipe Type	Beweld End (BW), Plain End Pipe (PE)

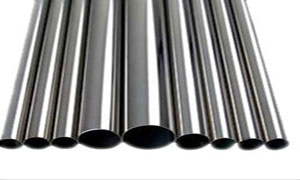

STAINLESS STEEL ERW PIPES (312)

We are one of the leading manufacturers, exporters and suppliers of superior quality stainless steel pipes, stainless steel tubes in different specifications, which find application in high demanding industries and sectors, particularly high temperature and corrosive services. Our stainless steel seamless pipes and stainless steel seamless tubes are reliable long lasting and at par with international quality and safety norms. Special grades can be made as per customer's requirements.

Weight & Thickness of Stainless Steel Schedule Pipes

Nominal	Bore	Sch 5		Sch 10		Sch 80		Sch 80		Sch 160
Inch	M/M	WT	(Kg/m)	WT	(Kg/m)	WT	(Kg/m)	WT	(Kg/m)	WT	(Kg/m)
1/8”	10.3	1.24	0.276	1.24	-0.278	1.73	-0.365	2.41	-0.469	-	-
1/4”	13.7	1.24	0.38	1.65	-0.492	2.24	-0.633	3.02	-0.797	-	-
3/8”	17.2	1.24	0.49	1.65	-0.63	2.31	-0.846	3.2	-1.1	-	-
1/2”	21.3	1.65	0.801	2.11	-1	2.77	-1.27	3.75	-1.62	4.75	-1.94
3/4”	26.7	1.65	-1.02	2.11	-1.27	2.87	-1.68	3.91	-2.2	4.75	-2.89
1”	33.4	1.65	-1.29	2.77	-2.09	3.38	-2.5	4.55	-3.27	6.35	-4.24
1.1/4”	42.2	1.65	-1.65	2.77	-2.69	3.56	-3.38	4.85	-4.46	6.35	-5.61
1.1/2”	48.3	1.65	-1.899	2.77	-3.11	3.68	-4.05	5.08	-5.41	7.14	-7.25
2”	60.3	1.65	-2.39	2.77	-3.937	3.91	-5.44	5.54	-7.48	8.74	-11.1
2.1/2”	73	2.11	-3.707	3.05	-5.249	5.16	-8.63	7.01	-11.4	9.53	-14.9
3”	88.9	2.11	-4.528	3.05	-6.463	5.49	-11.3	7.62	-15.3	11.1	-21.3
3.1/2”	101.6	2.11	-5.184	3.05	-7.415	5.74	-13.6	8.08	-18.6	-	-
4”	114.3	2.11	-5.938	3.05	-8.366	6.02	-16.1	8.56	-22.3	13.5	-33.5
5”	141.3	2.77	-9.35	3.4	-11.61	6.55	(21.8	9.53	-31	15.9	49.2
6”	168.3	2.77	-11.29	3.4	-13.81	7.11	-28.25	11	-42.7	18.2	(67.3
8”	219.1	2.77	-14.8	3.76	-20.01	8.18	-42.7	12.7	-64.6	23	-111

STAINLESS STEEL EFW PIPES (358)

STAINLESS STEEL PIPE (WELDED) 10" TO 24" NB. In schedule5, schedule 10, schedule 20, schedule 40 and also Special wall thickness are produced as per ASTM A - 358 by TIG welding ANS filler material is used.

Standard Weight Chart for S.S. Fusion Welding Pipe

Out Side Dia		Wall Thickness (in mm)
		SCH 5		SCH10S		SCH10		SCH 40S
Inch	MM	Thick	Kg/mtr	Thick	Kg/mtr	Thick	Kg/mtr	Thick	Kg/mtr
10"	273.05	3.4	22.97	4.19	28.2	4.19	28.2	9.27	61.2
12"	323.85	3.96	31.72	4.57	36.53	4.57	36.53	9.53	74.92
14"	355.6	3.96	34.87	4.78	41.97	6.35	54.77	9.53	82.55
16"	406.4	4.19	42.18	4.78	48.05	6.35	62.74	9.53	94.66
18"	457.25	4.19	47.15	4.78	54.12	6.35	70.71	9.53	106.78

|||
